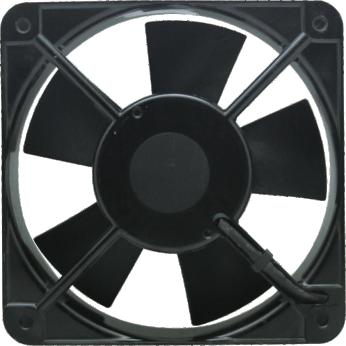

15050A AC Axial Fan
Reliable High-Power Cooling for Industrial & Harsh Environments
The 15050A AC Axial Fan is a high-performance cooling solution designed for industrial equipment, power systems, and demanding operating environments. With a robust aluminum frame, dual ball bearings, and stable AC operation, it delivers reliable airflow and long service life under continuous duty conditions.
Engineered for Reliability
The fan frame is manufactured from aluminum alloy, providing excellent mechanical strength, heat dissipation, and resistance to deformation. The impeller is made of engineering plastic, ensuring balanced airflow and stable performance during long-term operation. A dual ball bearing structure supports extended service life and consistent rotational stability.
Stable AC Performance

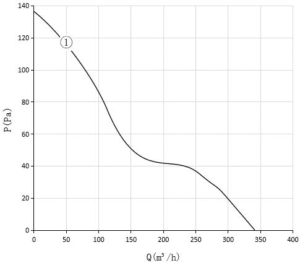

Operating on 230V / 50Hz AC power, the 15050A delivers a rated airflow of 339.8 m³/h with a static pressure of 137 Pa, making it suitable for applications requiring both high airflow and moderate pressure. The rated speed of 2550 RPM ensures efficient heat removal while maintaining controlled noise levels.
Designed for Harsh Environments
With an operating temperature range of −40°C to +75°C and a rated service life of 50,000 hours at 40°C, the 15050A is built for long-term reliability. Environmental performance complies partially with GJB 1423-1992, subject to detailed product specifications.
Typical Applications
-
Industrial control cabinets
-
Power supplies & inverters
-
HVAC and ventilation systems
-
Communication equipment
-
Energy and automation systems
15050A AC Axial Fan delivers dependable airflow, structural durability, and proven AC performance—making it a trusted cooling solution for industrial and mission-critical equipment.
