5048A DC Axial Flow Fan – High-Power Cooling for Harsh Military & Industrial Environments
The 5048A DC Axial Flow Fan is a high-performance cooling solution developed by SenharFans, designed for demanding military, aerospace, and industrial electronic systems. With an all-aluminum alloy structure, high airflow output, and full compliance with GJB environmental standards, the 5048A series delivers reliable thermal management in harsh operating conditions.
Robust Aluminum Alloy Construction
Both the frame and impeller of the 5048A fan are manufactured from aluminum alloy, providing excellent mechanical strength, thermal stability, and resistance to vibration and shock. Combined with a dual ball bearing system, the fan ensures long service life and stable operation under continuous high-speed conditions.
-
Frame material: Aluminum alloy
-
Impeller material: Aluminum alloy
-
Bearing type: Dual ball bearings
-
Weight: 120 g
High Airflow & High Static Pressure Performance
The 5048A series offers multiple speed configurations to meet different cooling requirements, delivering a strong balance between airflow and static pressure:
-
Airflow: up to 95.6 m³/h
-
Static pressure: up to 850 Pa
-
Speed range: 10,000–22,000 RPM
-
Rated voltage: 28 VDC (5V / 12V / 24V / 48V optional)
This makes the fan particularly suitable for high-density electronic enclosures, power electronics, radar systems, and sealed equipment with high airflow resistance.
Flexible Signal & Control Options
To support system-level monitoring and control, the 5048A fan supports multiple signal configurations:
-
PWM duty cycle speed control
-
Tachometer (RPM) feedback
-
High-level fault alarm
-
Combined control and feedback options
These features allow precise speed regulation and real-time operational monitoring in mission-critical systems.
Designed for Extreme Environments
The 5048A DC axial fan meets a wide range of GJB military environmental standards, ensuring reliable operation in extreme conditions:
-
High temperature: up to 85°C operation
-
Low temperature: down to –55°C operation
-
Salt spray, humidity, fungus resistance
-
Sand & dust protection
-

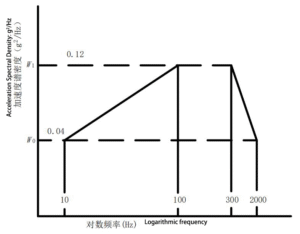

Shock, vibration, and acceleration resistance
-
Electromagnetic compatibility (RE102 / CE102)
-
Abnormal overvoltage resistance: 80V / 50ms
These capabilities make the 5048A an ideal choice for ground vehicles, naval platforms, airborne systems, and rugged industrial equipment.
Typical Applications
-
Military and aerospace electronics
-
Radar and communication systems
-
Power conversion equipment
-
Industrial control cabinets
-
Vehicle-mounted and shipborne electronic systems
SenharFans provides both standard configurations and application-oriented selection support to help customers choose the optimal fan solution.
