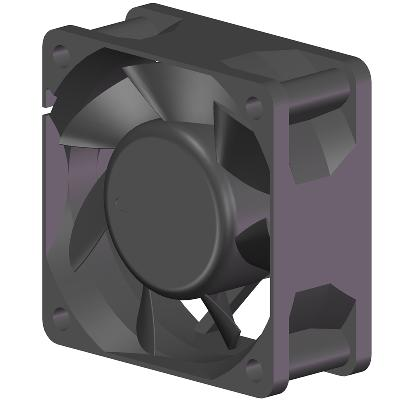

6025A DC Axial Flow Fan – High Pressure 60mm Cooling Fan for Industrial, Marine & Defense Electronics
In high-density electronic systems, insufficient airflow and unstable thermal control are the primary causes of system failure. The 6025A DC Axial Flow Fan (60 × 60 × 25.4 mm) is designed to deliver high airflow, strong static pressure, and military-grade environmental reliability, making it an ideal cooling solution for industrial electronics, radar systems, marine equipment, and airborne platforms worldwide.
As a professional DC axial fan manufacturer and OEM supplier, Senharfans provides this model to system integrators, defense contractors, industrial equipment manufacturers, and global distributors across Europe, Southeast Asia, the Middle East, South America, and Africa.

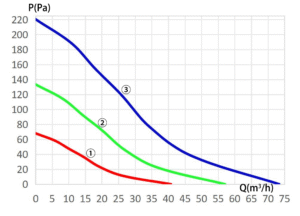

High Airflow & High Static Pressure for Demanding Applications
The 6025A series offers a wide performance range to match different system cooling requirements, especially in high-resistance airflow channels and sealed electronic enclosures.
| Voltage | Speed (RPM) | Airflow (m³/h) | Static Pressure (Pa) | Noise (dBA) |
|---|---|---|---|---|
| 12V | 5000 – 9000 | 40.8 – 73.4 | 68.1 – 220.5 | 35.6 – 52.2 |
| 24V | 5000 – 9000 | 40.8 – 73.4 | 68.1 – 220.5 | 35.6 – 52.2 |
| 28V | 5000 – 9000 | 40.8 – 73.4 | 68.1 – 220.5 | 35.6 – 52.2 |
Optional voltages: 5V / 12V / 24V / 28V / 48V
This performance makes the 6025A ideal for:
-
High power density industrial electronics
-
Radar transmitter and receiver modules
-
Marine electronic cabinets
-
Airborne avionics cooling systems
-
Military-grade communication equipment

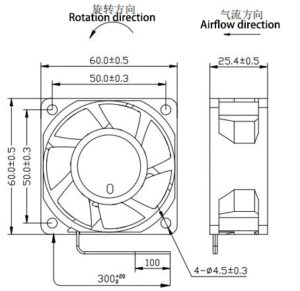

Industrial & Military-Grade Mechanical Design
-
Frame: Engineering Plastic
-
Impeller: Engineering Plastic
-
Bearing: Dual Ball Bearings
-
Weight: 72 g
The dual ball bearing structure ensures 50,000+ hours operational lifespan, stable speed performance, and excellent vibration resistance — essential for industrial OEM systems, military electronics, and long-life equipment platforms.
Intelligent Control Options for OEM & System Integration
To support advanced thermal management, the 6025A offers multiple signal configurations:
| Function | Application Value |
|---|---|
| PWM Speed Control | Intelligent airflow regulation |
| Tachometer Feedback | Real-time speed monitoring |
| Fault Alarm Output | System failure early warning |
| PWM + Tachometer | Closed-loop thermal control |
This allows seamless integration into PLC-controlled systems, military electronic platforms, industrial automation cabinets, and smart HVAC equipment.
Military Environmental Compliance – Built for Harsh Conditions
Designed according to GJB military environmental standards, the 6025A series withstands extreme operating environments:
-
Operating temperature: –40°C to +85°C
-
Storage temperature: –50°C to +95°C
-
Salt spray resistance: 192 hours (marine & offshore use)
-
High humidity: 95% RH cyclic test
-
Shock resistance: 30g
-

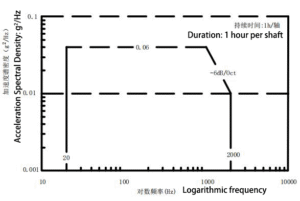

Vibration resistance: 13.5g
-
Low air pressure adaptation for airborne electronics
-
EMC compliance: RE102 & CE102
-
Abnormal overvoltage protection: 50V / 50ms
This makes the 6025A particularly suitable for defense electronics, naval equipment, aerospace electronics, and offshore industrial systems.
Typical Industries & Applications
-
Radar & Defense Systems – transmitter cabinets, signal processing modules
-
Marine & Shipborne Electronics – navigation systems, control cabinets
-
Airborne Avionics – onboard electronic cooling
-
Industrial Automation – PLC cabinets, drives & inverters
-
Communication Equipment – base stations, RF modules
-
HVAC & Condenser Units – compact high-pressure airflow paths
Why Choose Senharfans as Your DC Fan Supplier?
-
20+ years of industrial & defense cooling experience
-
Military-grade manufacturing & testing system
-
Strong OEM / ODM customization capability
-
Fast sampling & stable mass production
-
Trusted by global distributors & project integrators
Senharfans – Reliable Fans, Trusted Solutions.
📩 Contact us for datasheets, samples, and customized thermal management solutions.
