7010A DC Axial Flow Fan – Compact, Reliable Cooling Solution for Industrial & Defense Electronics
In compact electronic systems, stable airflow, long service life, and environmental reliability are critical to ensure continuous system operation. The 7010A DC axial flow fan (70×70×10.5mm) is engineered to deliver consistent airflow, low noise, and outstanding durability, making it ideal for industrial control, communication systems, power electronics, and defense-grade equipment.
Designed according to GJB military environmental standards, the 7010A series ensures stable performance in extreme working environments, where reliability is non-negotiable.
Key Specifications Overview
| Parameter | Value |
|---|---|
| Size | 70 × 70 × 10.5 mm |
| Bearing Type | Dual ball bearings |
| Voltage Options | 5V / 12V / 24V / 28V / 48V |
| Rated Speed | 4000 RPM |

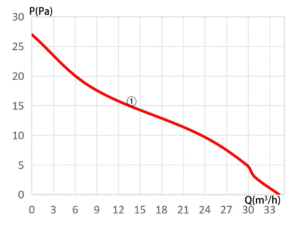

| Airflow | 34.3 m³/h |
| Static Pressure | 27.0 Pa |
| Noise Level | 36.1 dBA |
| Weight | 32 g |
This balanced combination of airflow, noise control, and compact structure makes the 7010A series particularly suitable for tight-space electronic enclosures.
Structural Design for Long-Term Stability
-
Frame & Impeller: High-strength engineering plastic
-
Bearing System: Dual ball bearings for long operational life
-
Motor Type: Brushless DC motor
-
Compact thickness: Only 10.5 mm
This structure provides low vibration, low noise, and high mechanical stability, even under continuous 24/7 operation.
Intelligent Control & Signal Options
To meet different system integration needs, 7010A supports multiple intelligent control functions:
| Code | Function |
|---|---|
| 0 | No function |
| 1 | PWM speed control |
| 2 | High-level fault alarm |
| 3 | Tachometer (RPM feedback) |
| 4 | PWM + fault alarm |
| 5 | PWM + tachometer |
These features allow precise airflow control, real-time monitoring, and predictive maintenance, which are essential in industrial automation and mission-critical systems.
Military-Grade Environmental Adaptability (GJB Standards)
7010A is designed and tested according to GJB150 & GJB151 military environmental standards, enabling stable operation in:
-
High temperature: up to +75°C operating
-
Low temperature: down to –40°C operating
-
High humidity: 95% RH cyclic damp heat
-
Salt spray: 192 hours
-
Sand & dust resistance
-

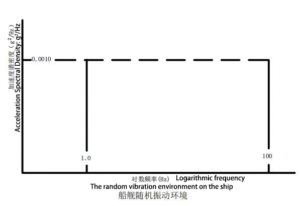

Shock & vibration endurance
-
Electromagnetic compatibility (EMC)
This makes it suitable for industrial, marine, vehicle-mounted, and defense electronic platforms.
Typical Applications
-
Industrial automation control cabinets
-
Power supplies & inverter systems
-
Communication and networking equipment
-
Radar sub-modules
-
Defense electronics
-
Marine electronic systems
-
Transportation electronics
OEM & ODM Customization Services
As a professional DC axial fan manufacturer in China, Senharfans provides full OEM & ODM services, including:
-
Voltage & speed customization
-
Signal control customization (PWM / FG / Alarm)
-
Environmental protection enhancement
-
Special cable & connector solutions
-
Branding & packaging customization
We help customers build stable, reliable, and cost-effective cooling systems for demanding applications.
Your Reliable DC Cooling Fan Manufacturer in China
With over 20 years of cooling fan manufacturing experience, Senharfans focuses on high-reliability cooling solutions for industrial and defense markets, offering stable mass production, strict quality control, and engineering-driven customization.
📩 Contact us today to receive technical support, samples, and OEM project consultation.
