8025B DC Axial Flow Fan
Ultra-High Performance 80×80×25mm DC Cooling Fan for Aerospace, Defense & High-Density Electronics
In aerospace, radar, and defense electronic systems, cooling is not simply about airflow — it is about precision, reliability, environmental adaptability, and mission continuity.

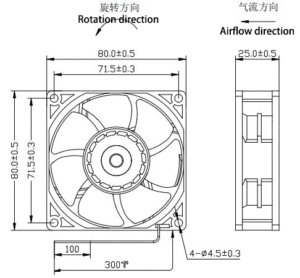

The 8025B DC Axial Flow Fan (80 × 80 × 25 mm) is designed to deliver exceptionally high airflow, ultra-high static pressure, and extreme environmental endurance, making it ideal for airborne electronics, radar systems, naval platforms, and high-density industrial equipment.
Structural Design & Core Advantages
● Aerospace-grade materials
-
Frame: Aerospace engineering plastic
-
Impeller: Aerospace engineering plastic
-
Lightweight, high rigidity, corrosion resistant
● Dual ball bearing system
-
High-speed stability up to 9000 RPM
-
Excellent vibration and shock resistance
-
Long operational lifespan
-
Designed for continuous 24/7 duty cycles
● High-performance aerodynamic blade design
-
Optimized blade profile
-
High static pressure output
-
Superior airflow efficiency
-
Excellent performance in high back-pressure environments

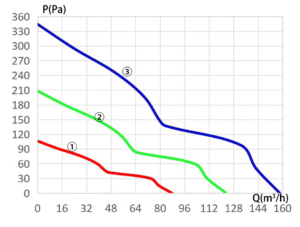

Ultra-High Airflow & Static Pressure Performance
The 8025B series provides multiple ultra-high performance configurations, offering exceptional airflow and pressure output:
| Speed | Airflow | Static Pressure |
|---|---|---|
| 5000 RPM | 87.9 m³/h | 106.3 Pa |
| 7000 RPM | 123.1 m³/h | 208.4 Pa |
| 9000 RPM | 158.2 m³/h | 344.4 Pa |
This makes the 8025B fan highly suitable for compact electronics, dense PCB layouts, heat sinks, and forced-air cooling channels.
Wide Voltage Range & Advanced Signal Control
Voltage options:
5V / 12V / 24V / 28V / 48V
Optional control & monitoring functions:
-
PWM speed control
-
Tachometer (RPM feedback)
-
Fault alarm output
-
Integrated PWM + alarm or PWM + speed feedback
These functions enable real-time system monitoring and intelligent thermal management, critical in aerospace and defense systems.
Military-Grade Environmental Adaptability
The 8025B fan series complies with GJB military environmental standards, supporting ground, marine, and airborne platforms.
Environmental capabilities include:
-
Operating temperature: –40°C to +75°C
-
Storage temperature: –50°C to +80°C
-
High humidity: 95% RH cyclic testing
-
Salt spray resistance: 192 hours
-
Fungus resistance: 28 days exposure
-
Sand & dust protection
-
Shock resistance: up to 30g
-

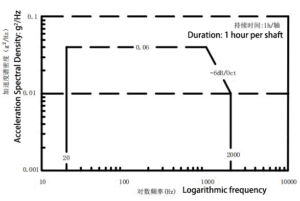

Vibration resistance: 9g operational / 13.5g structural
-
Low air pressure operation: 6.3 kPa (airborne use)
-
EMC compliance: RE102 & CE102
Typical Applications
The 8025B DC Axial Fan is widely applied in:
-
Airborne electronics & avionics systems
-
Radar signal processing platforms
-
Naval and marine electronic equipment
-
Defense and military communication systems
-
Industrial automation control cabinets
-
High-density power electronics
-
Precision measurement and detection systems
Why Choose Senharfans?
-
ISO9001 certified manufacturing system
-
Aerospace & defense cooling solution expertise
-
Advanced aerodynamic design
-
Military-grade environmental testing
-
Full OEM / ODM customization
-
Stable large-scale production capacity
At Senharfans, we focus on engineering-driven cooling solutions, providing reliable airflow where failure is not acceptable.
OEM & Customization Support
-
Voltage customization
-
Speed & airflow tuning
-
Connector & wiring harness options
-
Control signal configuration
-
Environmental grade selection
-
Labeling & branding support
Contact Senharfans today to build your mission-critical cooling solution.
