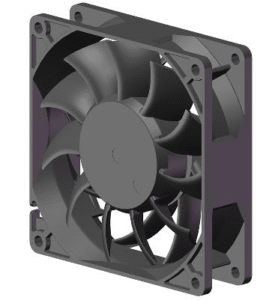

9225B DC Axial Flow Fan
92×92×25mm Medium-High Static Pressure DC Cooling Fan for Industrial & Power Systems
The 9225B DC Axial Flow Fan (92 × 92 × 25 mm) is designed to deliver a balanced combination of airflow, static pressure, and long-term reliability for industrial and electronic applications.

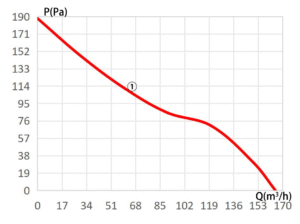

Operating at 5000 RPM, this model provides stable airflow up to 165 m³/h and static pressure up to 190 Pa, making it suitable for systems requiring consistent cooling performance without excessive noise or power consumption.
Key Technical Features
✔ Optimized Performance at 5000 RPM
-
Speed: 5000 RPM
-
Airflow: 165 m³/h
-
Static Pressure: 190 Pa
-
Noise Level: 56.2 dBA
-
Power: 8.5 W
This performance profile makes the 9225B ideal for medium airflow resistance environments such as:
-
Power supply units
-
Inverter systems
-
Control cabinets
-
Communication equipment

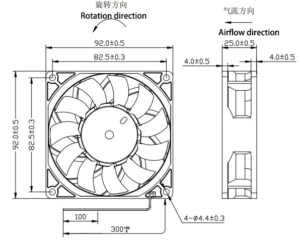

✔ Standard 92×92×25mm Design
The 25mm thickness provides:
-
Higher pressure than 20mm slim models
-
Better airflow penetration through filters and heat sinks
-
Improved cooling efficiency in enclosed systems
✔ Dual Ball Bearing Construction
-
Long service life ≥ 50,000 hours
-
Suitable for vertical and horizontal installation
-
Stable operation in vibration environments
✔ Multiple Voltage Options
Available voltages:
-
5V
-
12V
-
24V
-
28V
-
48V
Wide operating voltage ranges ensure compatibility with various electrical systems.
✔ Advanced Signal Options
The 9225B supports:
-
PWM speed control
-
Tachometer (RPM feedback)
-
High-level fault alarm
-
PWM + alarm combination
Suitable for integration into intelligent thermal management systems.
Environmental Reliability
Designed according to GJB environmental standards, the 9225B supports:
-
Operating temperature: –40°C to +75°C
-
Salt spray resistance: 192 hours
-

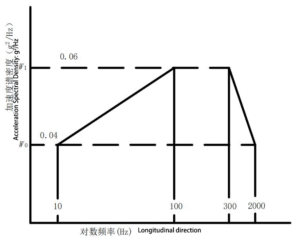

Shock & vibration testing
-
Low air pressure adaptability (6.3 kPa option)
This allows use in:
-
Industrial environments
-
Marine electronics
-
Outdoor equipment
-
Vehicle-mounted systems
Typical Applications
-
Industrial control panels
-
Power inverters
-
UPS systems
-
EV charging equipment
-
Communication base stations
-
Automation systems
Why Choose Senharfans?
At Senharfans, we focus on:
-
Stable and reliable DC cooling solutions
-
Strict quality control
-
OEM / ODM customization
-
Engineering support for airflow matching
-
Long-term supply stability
We provide cooling solutions designed for industrial and mission-critical environments.
👉 Contact us for datasheets, samples, or project consultation.
