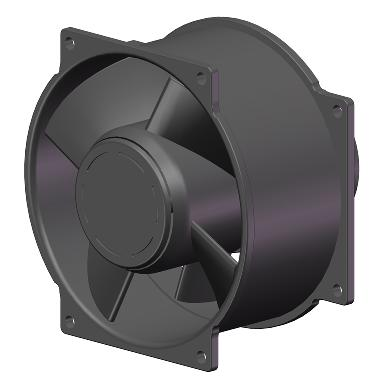

9575A DC Axial Flow Fan
High-Power Axial Cooling Solution for Harsh and Mission-Critical Environments

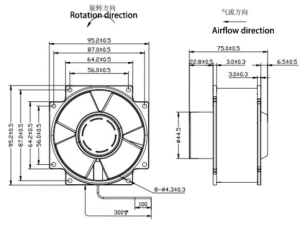

The 9575A DC Axial Flow Fan (95.2 × 95.2 × 75.0 mm) is a high-performance cooling solution engineered for applications that demand high airflow, high static pressure, and extreme environmental reliability.
Designed and manufactured by Senharfans, the 9575A series combines robust mechanical construction with proven DC motor technology, making it ideal for defense electronics, radar systems, power equipment, and industrial control cabinets.
Built for Strength and Stability
Unlike standard plastic-frame fans, the 9575A features an all-metal structure:
-
Frame: Aluminum alloy
-
Impeller: Aluminum alloy
-
Bearing System: Dual ball bearings
-
Weight: 412 g
This construction provides excellent mechanical rigidity, thermal stability, and vibration resistance, ensuring consistent operation even under high-speed and high-load conditions.

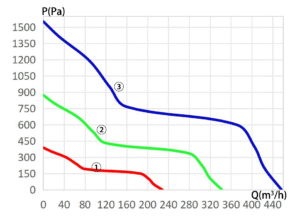

High Airflow, High Static Pressure Options
The 9575A series offers multiple performance levels to match different system requirements:
| Speed (RPM) | Airflow (m³/h) | Static Pressure (Pa) |
|---|---|---|
| 8,000 | 228.5 | 388.5 |
| 12,000 | 342.7 | 873.6 |
| 16,000 | 456.9 | 1553.0 |
With static pressure exceeding 1500 Pa, the 9575A is particularly suitable for high-impedance cooling paths, dense heat sinks, and sealed enclosures.
Designed for Harsh Environments
The 9575A DC Axial Flow Fan complies with GJB military environmental standards, covering:
-
High & low temperature operation
-
Rain and humidity exposure
-
Salt spray and corrosive atmospheres
-
Sand and dust resistance
-

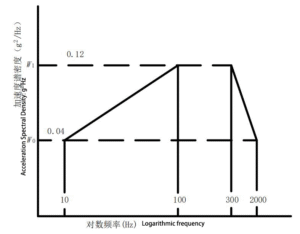

Shock, vibration, and acceleration
-
Electromagnetic compatibility (EMC)
Environmental adaptability options support:
-
Ground / vehicle-mounted
-
Marine / naval
-
Airborne applications
Flexible Control & Monitoring Options
Available signal functions include:
-
PWM speed control
-
Tachometer (RPM) feedback
-
High-level fault alarm
-
Combined control and monitoring modes
Voltage options include 5V, 12V, 24V, 28V, and 48V, enabling easy integration into diverse power architectures.
Typical Applications
-
Radar and communication equipment
-
Power electronics and converters
-
Military and aerospace systems
-
Industrial automation and energy storage
-
High-power control cabinets
9575A DC Axial Flow Fan — when airflow alone is not enough, and reliability is non-negotiable.
