17251A AC Axial Fan
High-Performance AC Cooling Fan for Industrial and Mission-Critical Applications
The 17251A AC Axial Fan is engineered for applications that require stable airflow, high reliability, and long-term operation in industrial and mission-critical environments. With a robust aluminum alloy frame and dual ball bearing structure, the 17251A provides efficient cooling with an impressive 50,000-hour service life at 40°C.
Structural Features
-
Frame Material: Aluminum alloy for strength, heat resistance, and corrosion protection
-
Impeller Material: Engineering plastic, optimized for efficient airflow and quiet operation
-
Bearing Structure: Dual ball bearings for reliable operation and extended lifespan
-
Service Life: Rated at 50,000 hours @ 40°C
-
Operating Temperature: −40°C to +75°C
-
Storage Temperature: −50°C to +85°C
-
Weight: 920.0 g

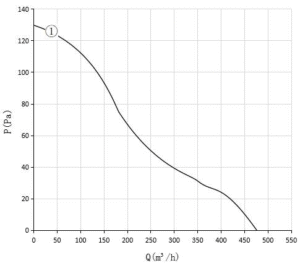

Performance Overview
Operating at 230V AC / 50Hz, the 17251A AC Axial Fan delivers excellent airflow and static pressure to keep systems cool:
-
Speed: 2500 RPM
-
Airflow: 341.4 m³/h
-
Static Pressure: 137 Pa
-
Noise Level: 53 dBA
-
Power Consumption: 48.0 W
This makes the 17251A ideal for power supplies, control cabinets, telecommunication systems, and industrial cooling solutions.
Environmental Adaptability
-
Rated Service Life: 50,000 hours at 40°C
-
Operating Temperature Range: −40°C to +75°C
-
Storage Temperature Range: −50°C to +85°C
Note: Environmental performance complies partially with GJB 1423-1992, subject to the specifications detailed in the applicable product datasheet.
Typical Applications
-
Industrial control cabinets
-
Power supply systems
-
Communication and network equipment
-
Mission-critical electronic systems
-
HVAC & industrial equipment
