6015A DC Axial Flow Fan – High-Reliability Cooling Solution for Industrial and Defense Electronics
As electronic systems become more compact and power-intensive, thermal management demands higher airflow, stronger static pressure, and greater reliability. The 6015A DC Axial Flow Fan (60 × 60 × 15.5 mm) is engineered to deliver powerful airflow, excellent static pressure, and military-grade environmental adaptability, ensuring stable cooling performance in demanding industrial and mission-critical applications.

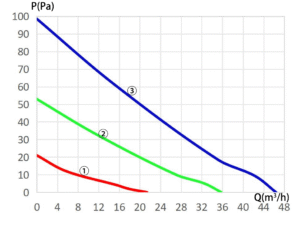

High-Efficiency Airflow Performance
Optimized aerodynamic blade design combined with a high-performance motor allows the 6015A to deliver excellent cooling efficiency within a compact form factor.
| Voltage | Speed (RPM) | Airflow (m³/h) | Static Pressure (Pa) | Noise (dBA) |
|---|---|---|---|---|
| 12V | 3000 – 6500 | 21.4 – 46.4 | 21.0 – 98.6 | 24.9 – 41.7 |
| 24V | 3000 – 6500 | 21.4 – 46.4 | 21.0 – 98.6 | 24.9 – 41.7 |
| 28V | 3000 – 6500 | 21.4 – 46.4 | 21.0 – 98.6 | 24.9 – 41.7 |
Available voltage options: 5V / 12V / 24V / 28V / 48V
This performance makes the 6015A ideal for high-density electronic assemblies, control cabinets, power modules, and sealed enclosures.
High Reliability Mechanical Design
-
Frame: Engineering plastic
-
Impeller: Engineering plastic
-
Bearing: Dual ball bearings
-
Weight: 46 g
The dual ball bearing system ensures long operational lifespan, stable speed output, and excellent resistance to continuous high-speed operation, while the reinforced engineering plastic structure provides high mechanical strength with lightweight construction.
Intelligent Speed Control & Monitoring
To meet advanced thermal management requirements, the 6015A supports multiple signal functions:
| Function | Description |
|---|---|
| PWM Speed Control | Dynamic airflow adjustment |
| Tachometer Output | Real-time RPM feedback |
| Fault Alarm | Early fault detection |
| PWM + Tachometer | Closed-loop speed control |
| PWM + Alarm | Intelligent system protection |
These functions enable intelligent fan control and system-level monitoring, essential for industrial automation, defense electronics, and aerospace platforms.
Military-Grade Environmental Adaptability
The 6015A is designed in compliance with GJB150 & GJB151 military environmental standards, enabling stable operation in extreme environments:
-
Operating temperature: –40°C to +75°C
-
Storage temperature: –50°C to +80°C
-
High humidity resistance: 95% RH cyclic test
-
Salt spray resistance: 192 hours
-
Sand & dust protection
-
Shock resistance: 20g
-
Vibration resistance: 13.5g
-
EMC compliance: GJB151B-2013
-
Power supply characteristics: GJB181B-2012
This ensures long-term reliability in airborne electronics, radar platforms, shipborne systems, and industrial control equipment.
Typical Applications
-
Radar & defense electronic systems
-
Airborne avionics
-
Shipborne electronic equipment
-
Industrial automation & control cabinets
-
Communication & networking equipment
-
Embedded computing platforms
Why Choose Senharfans 6015A DC Axial Flow Fan?
-
High airflow & strong static pressure
-
Compact structure for space-constrained systems
-
Long service life with dual ball bearings
-
Military-grade environmental reliability
-
Flexible voltage & intelligent control options
-
OEM / ODM customization support
Senharfans – Reliable Fans, Trusted Solutions.
📩 Contact us for datasheets, samples, and customized cooling solutions.
