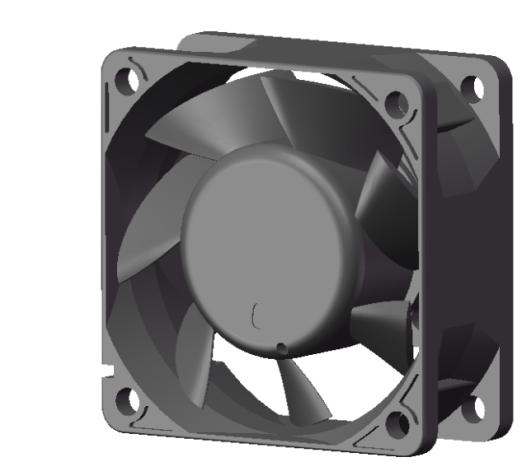

6025C DC Axial Flow Fan – Reliable DC Cooling for Rugged Electronic Systems

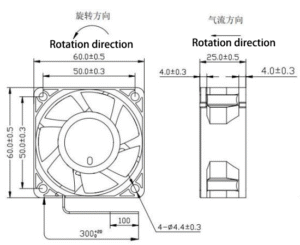

The 6025C DC Axial Flow Fan (60.0 × 60.0 × 25.0 mm) is a compact and reliable cooling solution developed by SenharFans, designed for military-grade and industrial electronic equipment requiring stable airflow, long service life, and environmental adaptability.
Durable Engineering Plastic Structure
The 6025C fan features a lightweight yet robust construction using engineering plastics for both the frame and impeller. Combined with a dual ball bearing system, it ensures smooth operation, reduced wear, and long-term reliability under continuous duty.
-
Frame material: Engineering plastics
-
Impeller material: Engineering plastics
-
Bearing type: Dual ball bearings
-
Weight: 70 g
Flexible Performance Options
The 6025C series offers multiple speed configurations to match different thermal requirements while maintaining controlled noise levels:
-
Speed range: 6,000 – 10,000 RPM
-

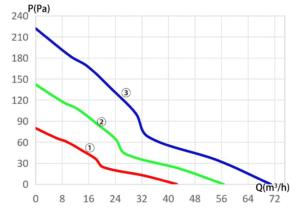

Airflow: up to 70.8 m³/h
-
Static pressure: up to 222 Pa
-
Noise level: 46.4 – 57.5 dBA
Available rated voltages include 12V, 24V, and 28V DC (5V / 48V optional), making the fan adaptable to a wide range of power systems.
Signal & Control Configurations
To support system monitoring and control, the 6025C fan can be configured with multiple signal functions:
-
PWM duty cycle speed control
-
Tachometer (RPM) feedback
-
High-level fault alarm
-
Combined control and feedback options
This flexibility allows easy integration into intelligent thermal management systems.
Military-Grade Environmental Adaptability
The 6025C fan is designed in accordance with GJB standards, ensuring stable performance in harsh environments:
-
High temperature operation up to 85°C
-
Low temperature operation down to –55°C
-
Resistance to humidity, salt spray, fungus, sand & dust
-
Shock, vibration, and acceleration resistance
-
EMC compliance: RE102 / CE102
-
Abnormal overvoltage tolerance: 50V / 50ms
Typical Applications
-
Military and industrial electronic enclosures
-
Communication and radar subsystems
-
Vehicle-mounted and shipborne equipment
-
Power control and distribution systems

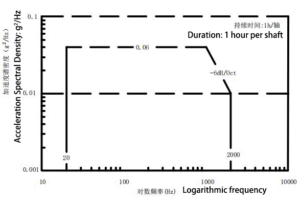

Vibration GJB150.16A-2009
0 (Ground / Vehicle-Mounted)
1 (Marine / Naval Applications)
