8041A DC Axial Flow Fan
Aluminum 80mm High-Speed DC Cooling Fan for Airborne & High-Reliability Applications
When cooling systems operate in extreme vibration, high temperature, and low-pressure environments, traditional plastic-frame fans are often insufficient.

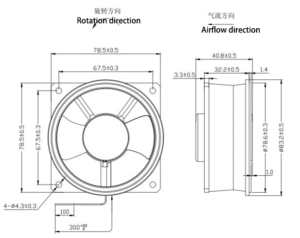

The 8041A DC Axial Flow Fan (78.5 × 78.5 × 40.8 mm) is engineered with a full aluminum alloy frame and impeller, delivering exceptional structural strength, high rotational stability, and superior thermal durability.
With a maximum speed of 22,000 RPM and static pressure up to 783 Pa, this model is ideal for airborne electronics, radar modules, power conversion systems, and high-density thermal assemblies.
Key Technical Highlights
✔ Full Aluminum Alloy Construction
-
Frame: Aluminum alloy
-
Impeller: Aluminum alloy
-
Enhanced structural rigidity
-
Better heat resistance than plastic fans
-
Suitable for vibration-sensitive systems
✔ Ultra High Speed Performance
-
Maximum speed: 22,000 RPM
-

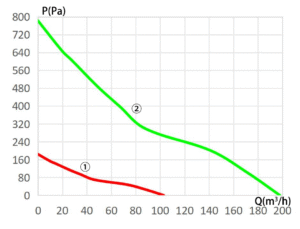

Airflow up to 197.9 m³/h
-
Static pressure up to 783 Pa
Designed for systems requiring strong airflow through compact heat sinks or dense airflow resistance.
✔ 28V System Compatibility
Commonly used in:
-
Airborne electronics
-
Military vehicle systems
-
Radar platforms
-
Aerospace power systems
Available voltages:
5V / 12V / 24V / 28V / 48V
Environmental & Military Compliance
The 8041A series is designed in accordance with:
-
GJB150 Environmental Testing Standards
-
GJB151B EMC Standards
-
GJB181 Power Supply Standards
Performance Highlights:
-
Operating temperature: –55°C to +85°C
-
Storage temperature: –60°C to +95°C
-
Shock resistance: up to 30G
-

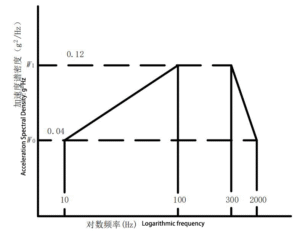

Vibration resistance: multi-axis military-grade testing
-
Low air pressure: 1.06 kPa (airborne condition)
-
Salt spray resistance: 192 hours
This makes the 8041A ideal for:
-
Avionics cooling
-
Airborne radar modules
-
High-altitude electronics
-
Harsh industrial environments
Signal & Monitoring Options
The 8041A supports:
-
PWM speed control
-
Tachometer (RPM feedback)
-
High-level fault alarm
-
PWM + alarm combination
Allowing real-time monitoring and precise airflow control.
Typical Applications
-
Radar T/R modules
-
Avionics control systems
-
Aerospace communication devices
-
Power inverters
-
High-density industrial electronics
Why Engineers Choose Senharfans
At Senharfans, we focus on:
-
High-reliability cooling solutions
-
Military-grade environmental durability
-
Engineering-driven thermal design
-
OEM / customization capability
We support projects requiring long lifecycle stability and harsh-environment operation.
