9220A DC Axial Flow Fan
92×92×20mm Low Profile DC Cooling Fan for Industrial & Electronic Equipment
The 9220A DC Axial Flow Fan (92 × 92 × 20 mm) is a low-profile cooling solution designed for applications requiring efficient airflow, compact thickness, and stable long-term performance.
With a slim 20mm thickness design, dual ball bearing structure, and multiple voltage options, the 9220A series is ideal for industrial control systems, power supplies, communication equipment, and electronic enclosures.
Key Features
✔ Slim 20mm Low Profile Design
-

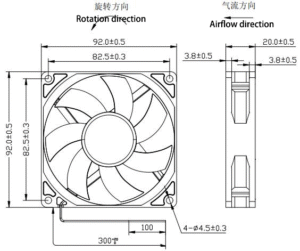

Dimensions: 92 × 92 × 20 mm
-
Ideal for compact equipment and shallow enclosures
-
Suitable for rack systems and control cabinets
✔ Stable & Reliable Operation
-
Dual ball bearings
-
Long service life ≥ 50,000 hours @40°C
-
Continuous 24/7 operation capability
✔ Multiple Performance Options
Speed Range:
-
2400 RPM
-
3000 RPM
-
4500 RPM

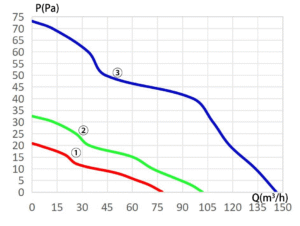

Airflow:
-
Up to 146.2 m³/h
Static Pressure:
-
Up to 73.1 Pa
Noise:
-
As low as 32.7 dBA
This allows engineers to balance airflow, noise level, and power consumption according to project requirements.
Electrical Options
Available voltages:
-
5V
-
12V
-
24V
-
28V
-
48V
Operating voltage ranges support stable operation in various industrial systems.
Control & Monitoring Options
The 9220A series supports:
-
PWM speed control
-
Tachometer (RPM feedback)
-
High-level fault alarm
-
PWM + alarm combinations
These features enable system monitoring and smart thermal control integration.
Environmental Performance
Designed according to GJB environmental standards, the 9220A series supports:
-
Operating temperature: –40°C to +75°C
-
Salt spray resistance: 192 hours
-
Humidity cycling test
-

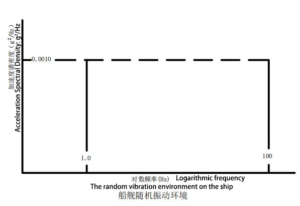

Shock & vibration testing
Suitable for:
-
Industrial control cabinets
-
Outdoor communication equipment
-
Marine electronics
-
Power conversion systems
Typical Applications
-
Industrial control panels
-
Power supplies & inverters
-
Communication base stations
-
Medical equipment
-
Server cabinets
-
Electronic enclosures
Why Choose Senharfans?
-
ISO-certified manufacturing system
-
Stable production capacity
-
OEM / ODM customization support
-
Reliable supply chain
-
Engineering-level support
We provide high-quality DC cooling fans tailored to long-term industrial applications.
👉 Contact us for datasheets, samples, or bulk quotation.
