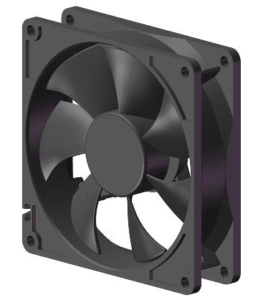

9225C DC Axial Flow Fan
92×92×25mm Aluminum Frame DC Cooling Fan for Industrial & Harsh Environments
The 9225C DC Axial Flow Fan (92 × 92 × 25 mm) is designed for applications requiring enhanced structural strength and improved durability compared to standard plastic-frame fans.
Featuring an aluminum alloy frame combined with an engineered plastic impeller, the 9225C series offers improved mechanical stability while maintaining optimized airflow performance.
This model is ideal for industrial, vehicle-mounted, marine, and vibration-sensitive environments.
Key Features
✔ Reinforced Aluminum Alloy Frame
-
Frame: Aluminum alloy
-
Impeller: Engineering plastic
-
Higher structural rigidity than plastic-frame fans
-
Better resistance to vibration and mechanical stress
This makes the 9225C suitable for:
-
Industrial control cabinets
-
Vehicle-mounted systems
-
Marine equipment
-
Outdoor electronics

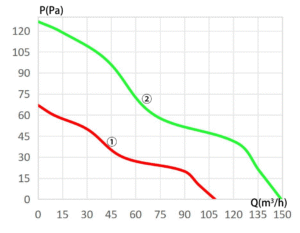

✔ Balanced Performance Options
Available performance levels:
4000 RPM Version
-
Airflow: 108.6 m³/h
-
Static Pressure: 67 Pa
-
Noise: 44.5 dBA
-
Power: 3.84 W
5500 RPM Version
-
Airflow: 149.3 m³/h
-
Static Pressure: 126.7 Pa
-
Noise: 51.4 dBA
-
Power: 10.8 W
This allows engineers to choose between energy-efficient operation or stronger cooling performance.

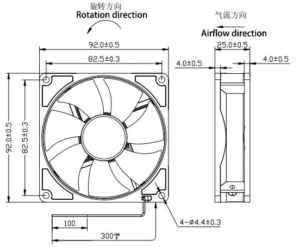

✔ Standard 92×92×25mm Industrial Size
-
Fits standard mounting positions
-
Compatible with existing 92mm cooling systems
-
Easy replacement for plastic-frame units
✔ Multiple Voltage Options
Available voltages:
-
5V
-
12V
-
24V
-
28V
-
48V
Suitable for industrial, vehicle, and telecom power systems.
✔ Smart Control & Monitoring
Supports:
-
PWM speed control
-
Tachometer (RPM feedback)
-
High-level fault alarm
-
PWM + alarm combination
Enables integration into intelligent thermal control systems.
Environmental Reliability
Designed according to GJB environmental standards, the 9225C supports:
-
Operating temperature: –40°C to +75°C
-
Salt spray resistance: 192 hours
-
Shock resistance up to 30G
-

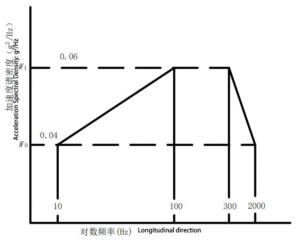

Vibration resistance
-
Low air pressure adaptability (6.3 kPa option)
Suitable for:
-
Marine electronics
-
Vehicle-mounted equipment
-
Outdoor cabinets
-
Industrial automation systems
Typical Applications
-
Industrial control cabinets
-
Vehicle electronics
-
Marine control panels
-
Power supplies
-
Communication systems
-
Outdoor automation equipment
Why Choose Senharfans?
At Senharfans, we provide:
-
High-reliability cooling solutions
-
Reinforced structural designs
-
OEM / ODM customization
-
Stable supply capability
-
Engineering support for airflow matching
We focus on durability, stability, and long-term performance.
👉 Contact us for datasheets or project consultation.
