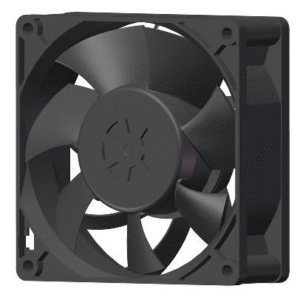

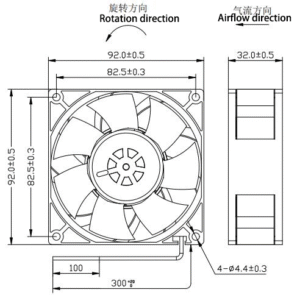

9232A DC Axial Flow Fan – 92×92×32mm High Static Pressure Cooling Solution for Demanding Environments

In mission-critical systems where airflow stability and environmental resistance are non-negotiable, the 9232A DC axial flow fan delivers powerful cooling performance in a compact 92 × 92 × 32 mm format.

Designed for industrial, marine, vehicle-mounted, and airborne electronic systems, this series provides high static pressure, dual ball bearing durability, and advanced environmental adaptability compliant with GJB standards.

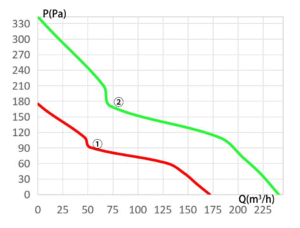

High Static Pressure Performance for Enclosed Systems

The 9232A series offers two core performance platforms:

5000 RPM Version

• Airflow: 171.9 m³/h

• Static Pressure: 175 Pa

• Power: 8.9 W

7000 RPM High-Performance Version

• Airflow: 240.7 m³/h

• Static Pressure: 343 Pa

• Power: 19.2 W

The 7000 RPM configuration is especially suitable for:

• Radar cabinets

• Sealed electronic enclosures

• Power supply modules

• Industrial control cabinets

• Military vehicle electronics

High static pressure ensures stable airflow even in restricted ventilation paths.

Wide Voltage Compatibility

Available voltage options:

• 5V

• 12V

• 24V

• 28V

• 48V

Wide operating ranges support vehicle, marine, and airborne power systems with voltage fluctuation tolerance.

Dual Ball Bearing for Long Service Life

The 9232A series adopts dual ball bearings, providing:

• Extended operational lifespan

• Improved high-temperature performance

• Better vibration resistance

• Stable operation in continuous-duty environments

This makes the fan ideal for systems requiring 24/7 reliability.

Advanced Signal Function Options

Customizable control and monitoring functions include:

• PWM Duty Cycle Speed Control

• Tachometer (RPM) Feedback

• High-Level Fault Alarm

• Combined PWM + Alarm

• Combined PWM + Tachometer

These features allow system engineers to integrate intelligent cooling management into control architectures.

Environmental Adaptability – Designed for Harsh Conditions

The 9232A series can be configured according to environmental rating codes covering:

• High & low temperature resistance

• Damp heat cycling (RH 95%)

• Neutral & acidic salt spray (192h)

• Fungus resistance

• Sand & dust testing

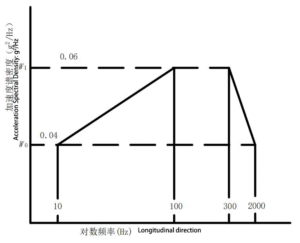

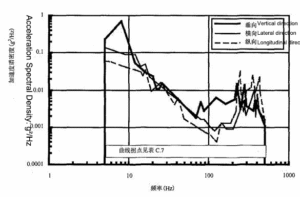

• Shock & vibration (up to 30g)

• Low air pressure for airborne use

• EMC compliance (RE102 / CE102)

Application environments include:

• Ground and vehicle-mounted systems

• Marine / naval equipment

• Airborne electronic systems

This level of environmental adaptability makes the 9232A suitable for defense, aerospace, and heavy industrial platforms.

Typical Applications

• Radar systems

• Avionics equipment

• Naval electronics

• Military vehicles

• Power electronics

• High-density industrial automation systems

Custom Engineering Support

Senharfans supports:

• Custom voltage configurations

• Signal function customization

• Environmental level selection

• Long-life industrial-grade versions

We assist system integrators in selecting the optimal configuration for their platform requirements.

If you are developing high-reliability electronic systems and require a 92mm axial cooling solution with strong static pressure and military-grade environmental resistance, the 9232A series provides a dependable option.

Contact our engineering team for performance curves, integration data, or customization support.
