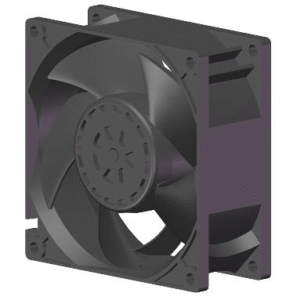

9238B DC Axial Flow Fan – High-Speed 92×38mm Industrial & Military Cooling Solution
When high airflow and extreme environmental reliability are required, the Senharfans 9238B DC Axial Flow Fan (92×92×38mm) delivers exceptional performance for demanding applications including aerospace electronics, marine systems, radar modules, armored vehicles, and industrial control cabinets.
Structural Design & Durability
The 9238B model features:
-
Frame: Engineering Plastic
-
Impeller: Engineering Plastic
-
Bearing System: Dual Ball Bearings
-
Weight: 210g
The dual ball bearing structure ensures long operational life, high-speed stability, and continuous-duty capability under harsh environments.
Performance Options
The 9238B series offers multiple speed configurations:

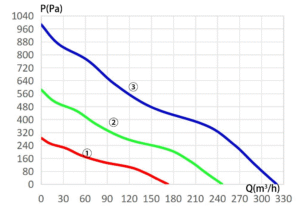

| Speed | Airflow | Static Pressure | Noise |
|---|---|---|---|
| 7000 RPM | 172.6 m³/h | 286.2 Pa | 61.0 dBA |
| 10000 RPM | 229.6 m³/h | 570.0 Pa | 68.2 dBA |
| 13000 RPM | 320.5 m³/h | 987.0 Pa | 74.4 dBA |
Available voltages:
5V / 12V / 24V / 28V / 48V
This flexibility allows system engineers to optimize cooling efficiency based on power system design.
Advanced Signal Functions
The 9238B series supports intelligent control features:
-
PWM Duty Cycle Speed Control
-
Tachometer (RPM) Feedback
-
High-Level Fault Alarm
-
Combined PWM + Tachometer
-
Combined PWM + Fault Alarm
These features allow integration into intelligent thermal management systems and aerospace-grade control systems.
Environmental Adaptability – Military Standard Compliance
The 9238B series can be manufactured according to:
-
GJB150 Series Environmental Tests
-
GJB151B EMC Compliance
-
GJB181B Power Supply Standards
Environmental capabilities include:
-
High Temperature Operation up to 85°C
-
Low Temperature Operation down to –55°C
-
192h Salt Spray Resistance
-
Sand & Dust Protection
-

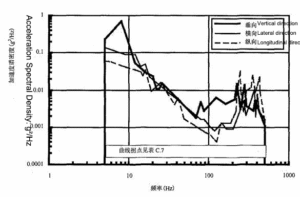

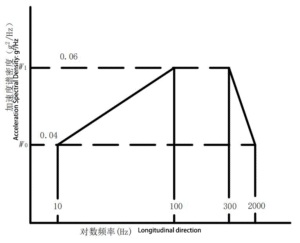

20g–30g Shock Resistance
-
9g Acceleration Test
-
6.3kPa Low Air Pressure (Airborne use)
Suitable for:
-
Airborne platforms
-
Naval equipment
-
Military vehicles
-
Harsh industrial environments
Application Fields
-
Radar systems
-
UAV & drone electronics
-
Military communication cabinets
-
Marine electronic systems
-
Aerospace avionics modules
-
Industrial automation equipment
Why Choose Senharfans?
-
Precision manufacturing
-
Strict quality control
-
Custom signal configurations
-
Military-grade environmental adaptability
-
OEM/ODM support

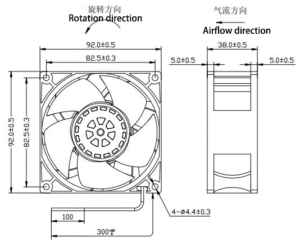

For technical drawings, airflow curves, or custom requirements, contact Senharfans engineering support team.
